Corvette Dakota VHX Instrumneter 1968-77

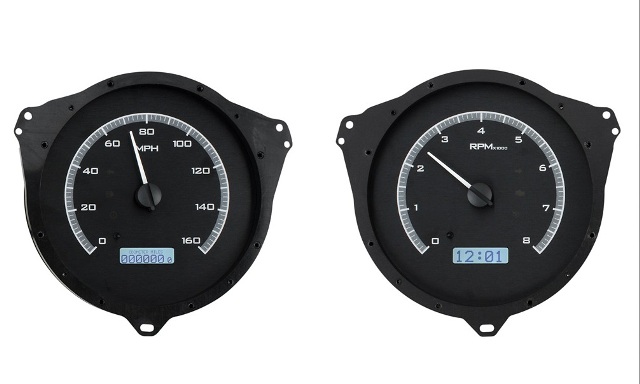

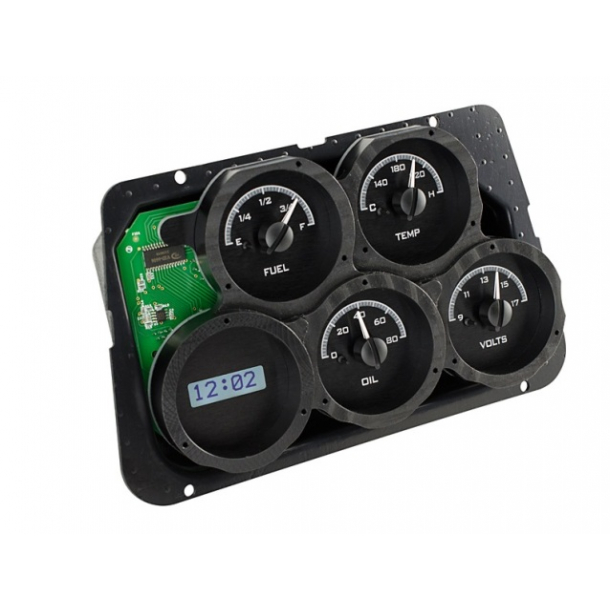

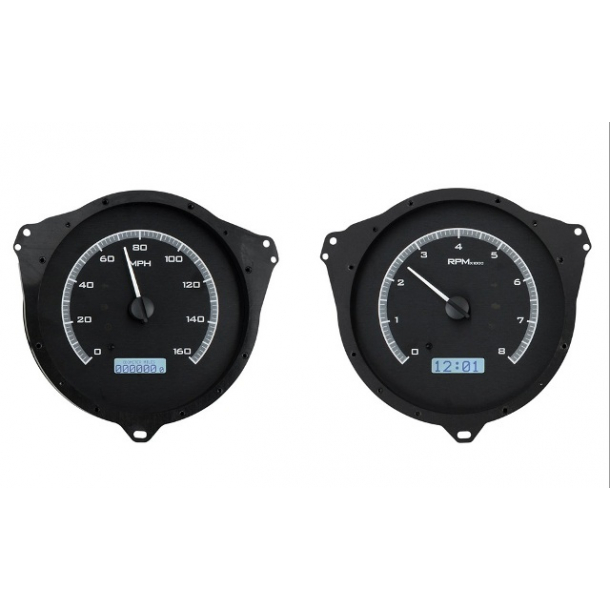

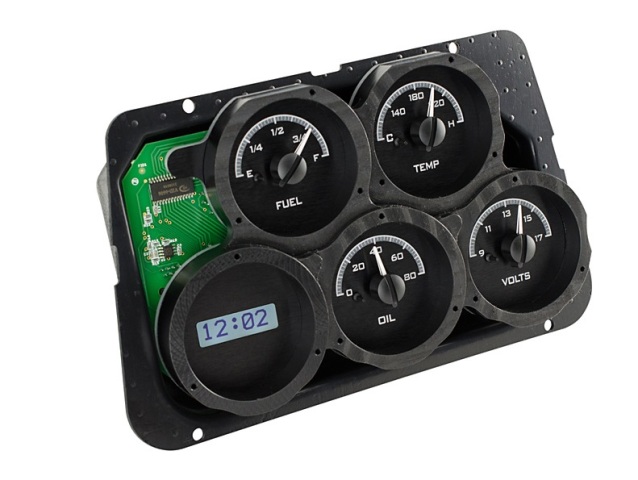

1968- 77 Chevy Corvette VHX Instruments

The new VHX Systems fit directly into the stock instrument housing of a 1968-77 Chevy Corvette without modification, adding a wealth of features to this iconic vehicle.

Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday’s traditional approach to instrumentation. A few of the features which you don’t normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems . Completely engineered and manufactured at our facility in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry
!
•Displays included with this instrument system: ◦Speedometer: 0-120/140/160 MPH analog depending upon application, 0-255 MPH/KPH digitally in message center.
◦Tachometer: 0-8,000 analog, 0-9,990 digitally in message center.
◦Oil Pressure: 0-80psi analog and digitally.
◦Water Temp: 140-220°F analog, 0-300°F/ 0-150°C digitally in message center.
◦Voltmeter: 0-17VDC analog and digitally.
◦Fuel Level: Empty- Full analog. 0-99% digitally in message center.
◦Also shown in the digital message center: ◾Odometer
◾Trip Odometer (A&B)
◾Resettable Service Odometer
◾Clock
◾Hour-meter
◾0-60 MPH (0-100 KPH) timer
◾¼ mile timer
◾¼ mile speed display
◾High Speed recall
◾High RPM recall


•Various Indicators can also be displayed such as: ◦Turn Signals
◦High Beam
◦Check Engine
◦Parking Brake
◦Cruise Control
◦4x4 (when equipped) displayed in message center.
◦Wait to Start (when equipped) displayed in message center.
